Your agent swarm as a live DAG, in a herdr pane.

Dagr is the Norse personification of day: he rides across the sky once per cycle and illuminates everything below. Also, it's a DAG. With herdr's r.

It helps you manage and track agentic workflows involving 5+ agents or steps.

Your plan is a DAG, and your agents keep it current as they work. You watch it live in a pane, and click any row to see who ran it, how long it took, and whether anyone actually checked the result.

Ask your agent to read this README. Feeling lazy? Copy this prompt:

Read https://raw.githubusercontent.com/aemrebarut/herdr-dagr/main/README.md
and tell me what it does and whether it fits the way I run agents.

herdr plugin install aemrebarut/herdr-dagr                            # prebuilt on released tags
npx skills add aemrebarut/herdr-dagr --skill dagr-producer -g         # teach your agent to feed it

The last command is what makes the pane useful: it installs the producer skill, which teaches your agent to write the run file. Nothing is written into your agent unless you run it yourself.

Then open the pane from inside herdr:

herdr plugin action invoke open-dagr --plugin herdr-dagr
# Windows preview: invoke open-dagr-windows instead

There is one action per side (open-dagr-right, -down, -up, -left), so bind the one you want to a key and it always opens there: see Install.

You kick off a multi-agent run and lose the plot in minutes. Run state is a JSON file or a status block, so you end up asking the orchestrator "where are we?" and trusting the answer. You can't see which attempt is actually running, what got sent back and why, what a gate is waiting on, or what a retry loop is about to spawn. And when an agent says "done", nothing tells you whether anyone checked.

• Shows the whole run at a glance. Every task, attempt, gate, and loop, one line per attempt, drawn like git log --graph.
• Keeps large programs legible. Recursive project rows pair a fold caret with an aggregate-state node aligned to their child rail, while dependencies remain free to cross projects.
• Shows what can move next. Queued rows derive waits ID, ready, unassigned, or needs answer from ordinary task facts; canceled work stays visible without blocking the rest of the view.
• Keeps history honest. A retry is a new row with a recorded cause (who sent it back, why). Nothing moves backward or repaints.
• Separates "the agent said done" from "verified". Every completion carries an evidence tier: ◆ verified · ◇ reported · ≈ heuristic · ! asserted.
• Shows the future, marked as future. Work a loop policy will emit is drawn in dotted ink, declared by the producer, never guessed by the renderer.
• Makes gates read like milestones. A local gate stays with its project; a gate joining workstreams moves to their shared project or the run root, with a state-bearing N→1 ⋈ join instead of hiding under one input lane.
• Lets you steer from the pane. One editable message goes to the orchestrator through Herdr. Three defaults—Use judgment, Get guidance, Snooze—stay flexible, and explicit authority says whether to return a recommendation or decide and continue.

It's terminal-native 256-color ANSI, a single Rust binary, no runtime interpreter.

Install the producer skill into your agent. It teaches any agent to write and maintain the run file:

npx skills add aemrebarut/herdr-dagr --skill dagr-producer -g

For an agent without a skill system, paste the file into its instructions instead. dagr --skill prints the copy bundled with your binary, and skills/dagr-producer/SKILL.md is the same file here. Nothing is installed into your agent unless you run that command yourself.

Then describe what your workflow should look like: review loops, parallel lanes, gates, whatever you want. The agent maintains the run file, the pane picks it up live, and you can iterate on the design with them mid-run. The selfrun demo is a run file produced exactly this way, by an agent onboarded with only the skill.

Your orchestrator (or any agent, onboarded with the shipped producer skill) maintains run.json against CONTRACT.md. dagr watches the file and draws it. It never writes run state; whoever produces the data owns it. Operator messages are journaled next to the run, then queued to the orchestrator; dagr never becomes a second workflow engine.

flowchart LR
    swarm["agent swarm<br/>(orchestrator + workers)"] -->|"writes run state<br/>(contract v3)"| run[("run.json")]
    run -->|"watches"| view["dagr view<br/>(herdr pane)"]
    run --> check["dagr check · dagr stats<br/>(lint / flow analytics)"]
    view -->|"contextual message<br/>+ explicit authority"| orch["orchestrator input queue<br/>(Herdr)"]
    orch -->|"normal orchestration tools"| swarm
    view -->|"append raw intent + receipt"| journal[("messages.jsonl")]
    swarm -->|"correlated resolution event"| run

The contract is the load-bearing part: it can express the task/attempt split, recursive project scopes, dependency promotion, typed loop policies, evidence tiers, operator-message correlation, and liveness. Anything that wants to be drawn has to say what actually happened, in a schema that can't blur "the agent said done" into "done."

├─● L3 contract freeze        done ◆ verified   12m
├─✗ L4·a1 impl: gate schema   sent back        10m  builder-2  ✗ operator "err paths untested"
├↩● L4·a2 impl: gate schema   done ◇ reported   7m  builder-2
├─◎ L5 impl: renderer core    working          14m  builder-1
│ ╰┄○ L5r review              (future: on done)
├─●◎●→⋈ G2 integration gate   waits L5r

Gate rows carry state-bearing joins (●◎●→⋈ G2) in declared input order; narrow panes collapse them to counts and then N→1. A gate is a project milestone, never a child of whichever input ran last. Moving the cursor reveals exact input ids and highlights the edges that justify the selected row. Projects recurse through foldable aggregate-state nodes; a cross-project dependency stays visible as ⇠ ink without duplicating the task.

If a terminal font renders ◎ unevenly, set DAGR_WORKING_GLYPH=* for the single-cell ASCII working mark.

One responsive pane with a stable selected-item inspector below the graph:

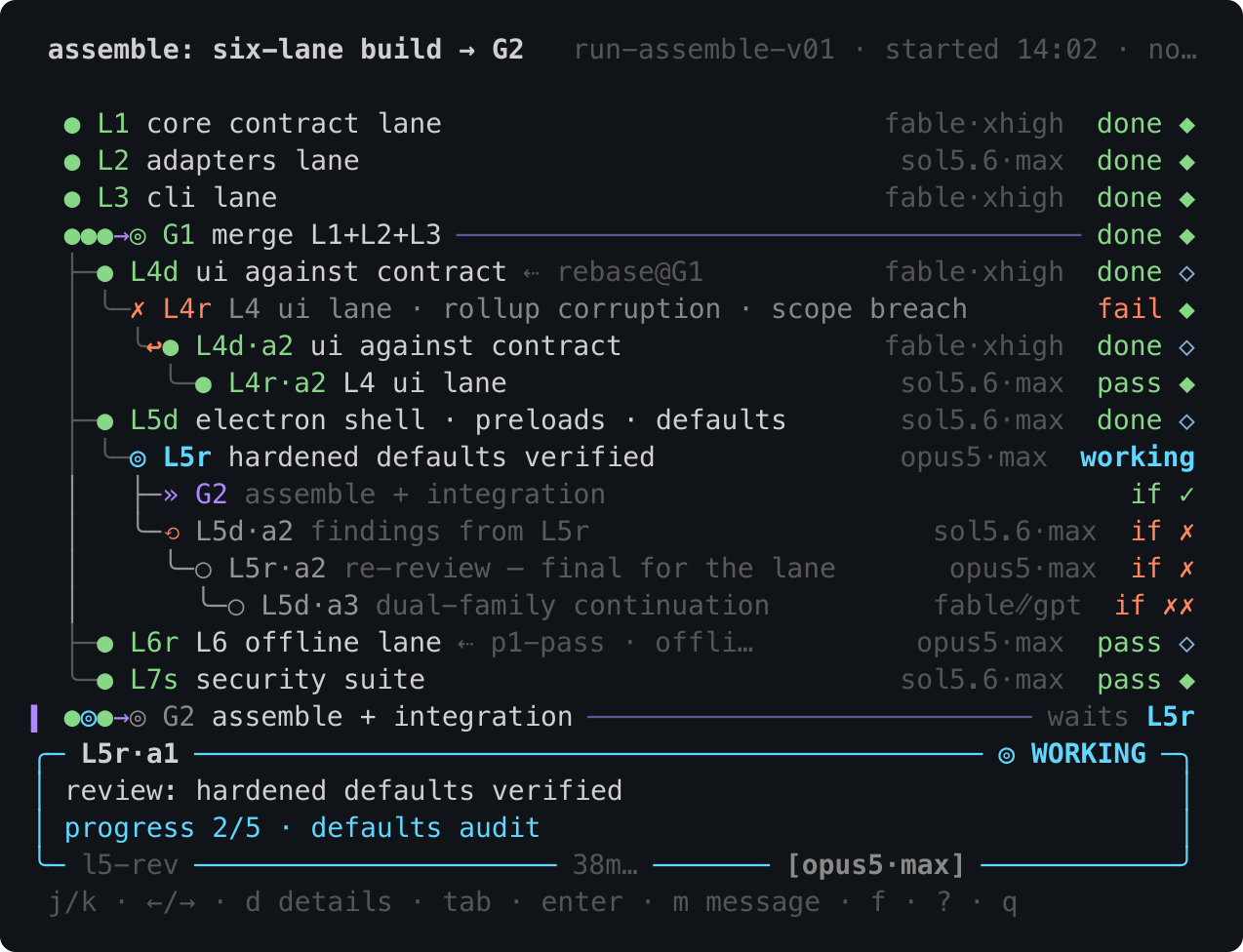

• Below ~146 columns (the cockpit shown at the top): a full-width trace. tig's grammar.
• At ~146 columns and up (the sidecar shown below): trace left and a compact attention queue right. lazygit's grammar.

At either width, cursor movement updates a fixed four-line inspector without moving the graph. Its rounded, state-colored frame is deliberately distinct from graph rails: identity and status live in the top border, task content and the most useful operational signal occupy the body, and actor/timing plus model·thinking live in the bottom border:

╭─ BUILD·a1 ─────────────────────────────────────────────── ◎ WORKING ─╮
│ build the API                                                        │
│ progress 3/7 · handlers                                              │
╰─ api-dev ────────────────────── 30m… ─────── [sol5.6·max] ───────────╯

Footer anchors depend only on pane width. A longer duration consumes rail to the left without moving m, a longer model consumes rail to the right without moving its column, and one final rail cell keeps ╯ visibly connected. At very narrow widths optional timing disappears before identity or geometry. Press d for a focus-plus-context view of the selected node's direct inputs and outputs; the complete detail body scrolls independently below it. Press d or esc to return to the exact graph position.

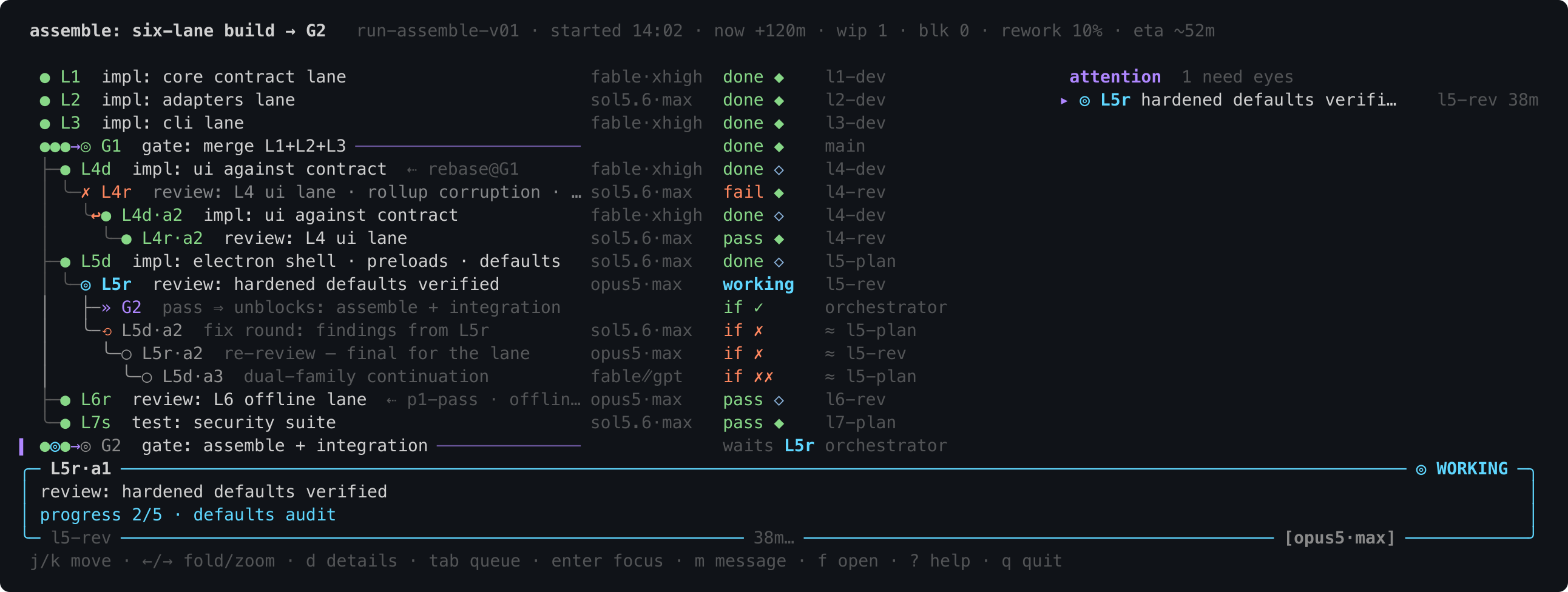

At wide widths, the same graph and inspector gain a right-hand attention queue:

Both PNGs are 2× mobile-friendly exports of real renderer output. The SVG source captures live beside them and remain regenerable with scripts/snapshot-svg.py:

dagr view samples/run.json --snapshot --compact --width 150 --select L5r \
  | python3 scripts/snapshot-svg.py assets/pane-sidecar.svg
npx --yes [email protected] -i assets/pane-sidecar.svg -o assets --density 144 -f png

Change the width to 72 and the filename to pane-cockpit for the compact pair. Rasterization is a maintainer-only documentation step, not a dagr runtime dependency. SVG box-drawing cells use vector rails so browser font metrics cannot open gaps that are absent in the terminal.

The basics: j/k move (g/G jump to the ends, ctrl-d/u half-page), tab cycles the attention queue, enter focuses the selected attempt's herdr pane, d opens its causal neighborhood and full scrollable detail card, m opens the orchestrator message composer, r reloads, ? opens help, and q quits. In the composer, tab cycles Use judgment / Get guidance / Snooze, ctrl-t changes authority, and all text remains editable. An adjacent actions.json can replace or add a few prompt starters without code or onboarding. Model, reasoning, and multi-agent requests remain ordinary text.

Big runs get noisy, so the tree folds and zooms. ← replaces the branch under the cursor with one ▸ N items aggregate row; it keeps blocked, lost, review, unverified, working, queued, failed, canceled, and done counts, so folding never buries an alarm. → unfolds, and on an open branch it zooms: the subtree takes over the pane with a breadcrumb up top, and anything outside that still needs eyes shows as a +n need eyes outside counter, so zooming can't hide trouble either. z folds everything that has settled, in one press. esc backs out of details, help, picker, search, and zoom before it ever quits.

Finding things is quick too: f opens a file picker that lists your recent runs first and scans nearby folders in the background, so switching runs is a few keystrokes, not a filesystem crawl. / filters rows by id, name, or agent as you type, n/N walk the matches, and y copies the selected row id to your clipboard.

The mouse works too: click a trace row or a queue item to select it, click the inspector for details, click a ▸ chip to unfold it, double-click a row to zoom into it, scroll to move the cursor (or the open detail card), and drag across anything to select text, which lands on your clipboard when you let go. The message action in the focus card is clickable; Enter remains the deliberate submission step. Legacy v1/v2 action data remains readable but has no key binding or execution path.

herdr plugin install aemrebarut/herdr-dagr   # checksum-verified prebuilt on released tags
herdr plugin action invoke open-dagr --plugin herdr-dagr
npx skills add aemrebarut/herdr-dagr --skill dagr-producer -g   # teach your agent to feed it

Released revisions download a matching binary for macOS (Apple or Intel), Linux (x86-64 or ARM64), or Windows x86-64. The installer checks the release's recorded commit as well as its checksum, so a normal released install needs no Rust or Cargo. An unreleased or locally changed ref builds from source instead of silently downloading older code.

Windows support follows Herdr's current preview boundary. Use the open-dagr-windows action (or the side-specific -down-windows, -up-windows, -left-windows, and -right-windows ids). Rendering, navigation, folding, search, and orchestrator messages use the Windows binary and Herdr CLI transport. Herdr's live pane-liveness overlay and Enter-to-focus link currently use Unix sockets, so those two conveniences are unavailable on Windows until Herdr exposes an equivalent named-pipe link.

Or from a clone, herdr plugin link . at the repo root.

Installing the plugin gives you the pane. The skill is what gives you something to draw, and it is a separate opt-in command: nothing writes into your agent's config on your behalf. See How to use it.

Bind it to a key in ~/.config/herdr/config.toml:

[[keys.command]]
key = "prefix+d"
type = "plugin_action"
command = "herdr-dagr.open-dagr"
description = "open dagr run DAG in split"

That opens it to the right. Want it somewhere else? Bind open-dagr-down, open-dagr-up, open-dagr-left, or open-dagr-right instead, one key per side. On Windows, bind the matching ids suffixed with -windows (for example, open-dagr-right-windows).

Or standalone, without herdr:

cargo build --release --locked
export PATH="$PWD/target/release:$PATH"   # demo docs assume dagr on PATH
export DAGR_RUN=samples/run.json
dagr view                             # interactive; --snapshot for capture
dagr check samples/run.json --strict
dagr stats samples/run.json
dagr --skill                          # the producer skill, as shipped

Cargo is required only when building from source.

• CONTRACT.md: contract v3 (v1/v2 remain readable), including recursive projects, scope-correct gates, and correlated operator messages.
• src/: the dagr binary (Rust; serde + crossterm + unicode-width). dagr check lints a run file against the contract (--json for machine output, --strict to fail on warnings); dagr view is the pane (interactive watch mode, --snapshot for CI capture); dagr stats reports flow analytics (age, WIP, rework, critical path, naive ETA) over per-attempt timestamps.
• herdr-plugin.toml: the plugin manifest.
• samples/run.json: canonical contract v1 sample. samples/states.json: the whole state machine as data (every task/attempt state, all four evidence tiers), the renderer's regression fixture.
• demos/: selfrun/ (this repo's own development as a run file, produced by an agent onboarded with only the producer skill).
• skills/dagr-producer/: the skill that teaches any agent to set up and maintain a run graph against the contract, looping on dagr check for feedback. Install it with npx skills add aemrebarut/herdr-dagr --skill dagr-producer -g, or print the bundled copy with dagr --skill. Its examples/ are held strict-clean by the test suite.
• assets/: mobile-friendly README PNGs and their SVG source captures, generated from samples/run.json by scripts/snapshot-svg.py.

v0.3.1. Long graphs now scroll inside their own vertical region; selected-item detail and command hints remain docked regardless of graph length. The compact inspector uses a state-colored rounded frame with fixed footer anchors. Mouse targets, text selection, page navigation, modal prompts, and extremely tall wrapped detail share the same height-aware layout.

v0.3.0. Contract v3 makes the editable message composer the sole action path while v1/v2 files remain readable with legacy action data inert. Each submission records its run, task, revision, starter, authority, and exact text before one addressed Herdr delivery. The release includes checksum-verified standalone binaries for macOS (Apple or Intel), Linux (x86-64 or ARM64), and Windows x86-64, with Cargo needed only for source-build fallback. Contract, model, renderer, interaction, installer, and width-regression tests cover the shipped paths.

Licensed under either of Apache License, Version 2.0 or MIT license at your option. Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in this work by you, as defined in the Apache-2.0 license, shall be dual-licensed as above, without any additional terms or conditions.
