This repository is a ROS 2 workspace for a PX4/Gazebo drone navigation stack. The main package is drone_city_nav, an ament CMake package built with colcon.

An autonomous UAV, a PX4 quadrotor in offboard mode, navigates GNSS-denied indoor and underground spaces with no prior map. It localizes by stereo visual-inertial odometry (VIO, a stereo MSCKF) or, on the lidar profile, by lidar-inertial odometry (LIO), each correcting its drift by relocalization against a map of its own — SLAM in the broad sense, with no pose graph or global optimization. It maps obstacles into a 3D voxel occupancy grid built in flight, plans with a persistent D* Lite 3D path planner, and avoids collisions with a GPU MPPI local planner (model predictive path integral, a sampling-based MPC) under a braking contract tied to the measured sensor range. Simulated in Gazebo Harmonic with PX4 SITL on the DARPA SubT Urban Circuit location.

Keywords: UAV, drone, quadrotor, multirotor, PX4, ROS 2, Gazebo, SITL, autonomous navigation, GNSS-denied, GPS-denied, indoor navigation, visual-inertial odometry (VIO), MSCKF, stereo depth, lidar-inertial odometry (LIO), SLAM, relocalization, EKF, occupancy mapping, ESDF, path planning, D* Lite, MPPI, model predictive control, obstacle avoidance, collision avoidance, return to home, DARPA SubT.

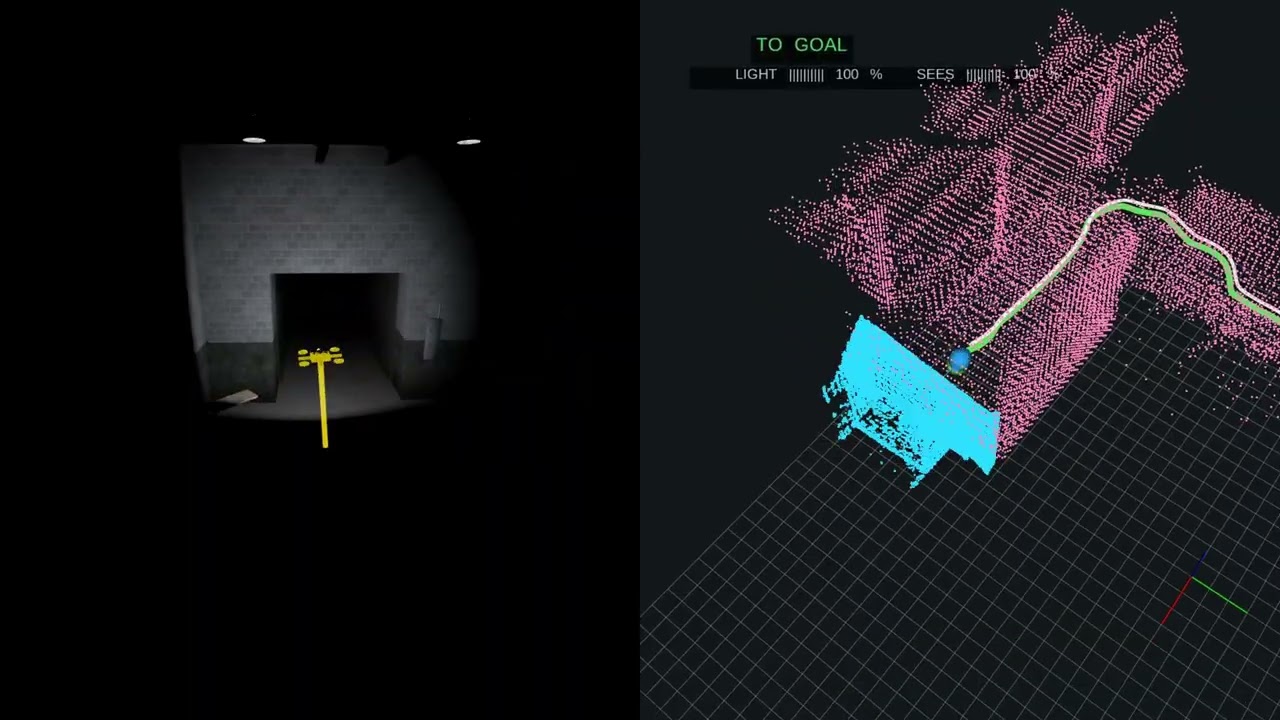

Watch on YouTube: point-to-point flight through the unlit Urban Circuit Practice 01 location, lit only by the light the vehicle carries, with no static map, no GNSS and no lidar, on the forward stereo pair, time-of-flight rangefinders and the IMU; 420 m at a mean 1.8 m/s. The left half is the world as it is, the right half is RViz with what the vehicle knows and decides (docs/rviz.md), the whole flight uncut in real time, as recorded for v0.5.0 (October 2026).

On a Linux host with Docker, git and the NVIDIA container runtime, one script prepares a fresh clone and starts the urban point-to-point simulation:

git clone https://github.com/formiat/px4-ros2-drone-nav.git
cd px4-ros2-drone-nav
./scripts/bootstrap.sh

It builds the dev image, clones PX4 Autopilot into external/, builds PX4 SITL and the workspace inside the container, fetches the versioned urban environment assets, and launches the Gazebo GUI flight. --headless runs the same flight headless with the mission check; --no-run only prepares. Every step is skipped when its result already exists, so the script can be rerun. The first run downloads several gigabytes and builds for tens of minutes. Every scenario the repository can run, with one command and a description of what it shows, is listed in docs/scenarios.md.

The GUI run needs no xhost grant: the container carries no X authority cookie of its own, so scripts/container_run.sh mounts the one the session uses read-only and names it in XAUTHORITY. On a Wayland session that is the compositor's file under /run/user, which is why DISPLAY must be set and XWayland running. If no window appears, the reason is usually the first lines of log/gz_gui_drone_nav.log; the server's own output is in log/gz_drone_nav.log. Stop everything with ./scripts/stop_sim.sh.

The project roadmap is maintained in docs/roadmap.md. It covers cooperative air traffic, generalized static 3D passages, no-static 3D lidar perception, lidar-inertial localization, realistic cooperative communication, camera-based 3D perception without lidar or static maps, flight without GNSS and without lidar, the return home from a goal proven unreachable, flight in degraded visual conditions, flight through transient and scattering obstacles, a simulation slowed on purpose with its flight recorded without a screen, moving obstacles such as doors, and passive navigation in total darkness on thermal cameras. What is known to be wrong or unfinished and has been set aside is in docs/technical_debt.md. The requirements a flight is judged by, the navigation invariants, the acceptance conditions and the numbers the work relies on, each with who set it and why, are in docs/specification.md.

Code releases are tagged vMAJOR.MINOR.PATCH on main and described in CHANGELOG.md; environment asset bundles carry their own environment-assets-* tags. The current release is v0.5.0: flight in degraded visual conditions through a dark 3D urban location lit only by the vehicle's own light, with no static map, no GNSS and no lidar, on a stereo pair that both perceives and localizes; the light's failures, its battery and its loss are handled by the vehicle, and every flight is recorded whole in real time. Each flight's runtime manifest records the package version and git describe.

This project is a simulation-oriented research and development stack. It is tested with PX4 SITL in Gazebo and is not certified or validated for real aircraft operation.

Use it as a planning, simulation, and offboard-control testbed. Do not use it on physical drones without a separate safety review, hardware-specific failsafe design, controlled test environment, and compliance with local regulations. No onboard computer has run it: the resource figures are from a workstation (docs/resource_budget.md). By default the vehicle carries no lidar: it navigates on a forward stereo pair and two time-of-flight sensors (docs/camera_perception.md), and it flies without GNSS: a visual-inertial estimator on the same pair replaces the simulated GNSS, the magnetometer and the simulation heading source (LOCALIZATION_PROFILE=visual_inertial, the default, docs/localization.md). On the 3D lidar profile (CAMERA_PROFILE=none NAVIGATION_SENSOR_PROFILE=lidar) a lidar-inertial estimator does the same (lidar_inertial). gnss is a request, and what the multi-vehicle missions fly until the vehicles share a frame (roadmap item 15). The ordinary flight is dark since roadmap item 17: the location has no light of its own, the cameras carry noise, and the vehicle flies by a light it carries, which flickers in every flight; when that light fails, or its battery will not last to the goal, the vehicle comes home, and with the light gone it descends and stays whole (docs/scenarios.md). A blank surface the matcher cannot match returns no depth, measured and without a remedy.

What cost the most flights was rarely the algorithm. These are the findings that are easy to lose weeks to, each with the flight it was measured on:

• The autopilot's clock. PX4 SITL is lockstep, so its clock is the simulation clock, but uXRCE-DDS synchronises it against the agent's wall clock. Below a real-time factor of 1 the two drift, PX4 resets the synchronisation every 15 s or so, and each reset left the stack about a second without an authoritative state, 17 times in one flight, and lost one vehicle. UXRCE_DDS_SYNCT is 0 and the nodes map the stamps with the identity (docs/gazebo_simulation.md).
• What an odometry's noise means to EKF2. EKF2_EVP_NOISE has to cover what one update moves the pose by, not how accurate the estimate is: at 0.1 m a 0.4 m correction was gated out, the vehicle dead-reckoned 1.8 s and reset its position by 1.19 m. The estimator's own variances are not passed at all, because an odometry's honest variance grows without bound and the autopilot has no other position (docs/localization.md).
• The noise densities are not the sensor's. A filter told the gyroscope is eighteen times noisier than it is lets every visual update walk the heading, which no camera observes: 2 to 4 degrees per flight, 1.6 to 2.1 m at the goal. The accelerometer's is not its datasheet figure either, because tilt error leaks gravity (docs/localization.md).
• One sensor, two consumers, no dependency between them. The stereo pair both perceives and localizes, but the estimator never reads the obstacle memory: a pose taken from a map built from that pose hides its own drift. It keeps a map of its own, of the depth laid by its corrected pose, and registers only against what it laid more than 20 s before: a return to ground it has seen corrects the drift, a first pass cannot (roadmap item 19). A contract test holds the estimator's library to Eigen and the standard library alone. What that buys is a drift we can measure instead of one that looks self-consistent; what it does not buy is independent failure. One pair blinds both consumers at once; since roadmap item 17 the braking contract reads the frame it brakes on, and the estimator declares its dead reckoning.
• Arrival has to be judged by the truth. The mission monitor asks the vehicle where it thinks it is, so with an odometry it can arrive in its own coordinates while standing elsewhere. Every flight fails unless the true pose is inside the 2.0 m capture radius at the acknowledgement (docs/testing.md).

What is known to be wrong or unfinished, with the class of each entry, is in docs/technical_debt.md.

Run commands from the repository root through the dev container. The container workflow is the only supported build, test, quality, and simulation workflow for this repository.

Use the top-level wrapper scripts for common workflows:

./scripts/bootstrap.sh
./scripts/build.sh
./scripts/test.sh
./scripts/sim_cooperative_traffic_urban_gui.sh
./scripts/sim_cooperative_traffic_urban_headless.sh
./scripts/sim_urban_point_to_point_gui.sh
./scripts/sim_urban_point_to_point_headless.sh
./scripts/sim_urban_point_to_point_lidar_gui.sh
./scripts/sim_urban_point_to_point_lidar_headless.sh
./scripts/sim_urban_point_to_point_gnss_gui.sh
./scripts/sim_urban_point_to_point_gnss_headless.sh
./scripts/sim_urban_return_home_gui.sh
./scripts/sim_urban_return_home_headless.sh
./scripts/sim_urban_return_home_lidar_gui.sh
./scripts/sim_urban_return_home_lidar_headless.sh
./scripts/sim_environment_demo.sh
./scripts/stop_sim.sh

These wrappers start the dev container with the current UID/GID so generated and formatted files remain owned by the invoking user. Every sim_*.sh wrapper runs the same cleanup as ./scripts/stop_sim.sh before its run and again when the run ends, however it ends; stop_sim.sh stops every container of this repository that runs a simulation target and every simulation process on the host, and touches nothing else. Before every run the wrappers also delete simulation logs older than a week (./scripts/prune_sim_logs.sh: entries of log/, run directories, PX4 flight logs; log/tools and any entry holding a .keep file stay; --dry-run previews, DRONE_GAZEBO_PRUNE_LOGS=false disables). ./scripts/dev_shell.sh remains available when you need an interactive container shell. Inside that shell, use these targets:

Every development container requires and receives the NVIDIA runtime. The container wrapper fails before starting if the host NVIDIA runtime is not available, so CUDA runtime failures are not deferred to ROS nodes or tests.

make build
make test
make test-scripts
make quality
make format
make sim-cooperative-traffic-urban-gui
make sim-cooperative-traffic-urban-headless
make sim-urban-point-to-point-gui
make sim-urban-point-to-point-headless
ENVIRONMENT_DEMO_ID=urban_circuit_practice_01 make sim-environment-demo

The point-to-point mission visits sequential waypoints. Its scenario owns the default sequence; override it with MISSION_GOALS_XYZ_M using x,y,z;x,y,z;... syntax. Each waypoint is terminal and the mission succeeds only after the vehicle settles at the last one. A single-destination mission uses the same parameter with one x,y,z triple.

Build and run the isolated CUDA MPPI benchmark:

make mppi-benchmark \
  MPPI_BENCHMARK_ARGS="--scenario urban_blocks --rollouts 8192 --steps 80"

The benchmark target is opt-in and does not add CUDA to the normal ROS runtime targets. It requires the NVIDIA container runtime; scripts/container_run.sh passes the host GPU through automatically when that runtime is available.

The shared container entrypoint sources the supported ROS 2 and PX4 message workspaces automatically before running any command. Do not manually source ROS or px4_msgs setup files for the normal workflow. For a custom image or external dependency checkout, override ROS_SETUP_FILE or PX4_MSGS_SETUP_FILE instead of editing the scripts.

Build the ROS package:

./scripts/build.sh

Run unit tests:

./scripts/test.sh

Run script-level tests inside an interactive container shell:

make test-scripts

Run the non-mutating C++ quality checks inside an interactive container shell:

make quality

Format only changed C++ files inside an interactive container shell:

make format

Run the GUI simulation:

./scripts/sim_urban_point_to_point_gui.sh

Simulation runs use no static map by default. Set ENABLE_STATIC_MAP=true explicitly when a static-map run is required.

Launch a downloaded environment without PX4, ROS, RViz, lidar, or a mission (the urban world; another with ENVIRONMENT_DEMO_ID=<id>):

./scripts/sim_environment_demo.sh

Gazebo's free camera is the spectator: use its normal mouse and keyboard camera controls to inspect the world. The demo materializes local visual resources and does not require a network connection after the relevant environment assets have been fetched.

Its position, orientation, and world-space forward direction are logged once per second by default in log/environment_demo/<environment-id>/gz_gui_free_camera.jsonl. Override the cadence or destination with GZ_GUI_CAMERA_LOG_INTERVAL_S and GZ_GUI_CAMERA_LOG_FILE.

Available IDs are:

finals_prize_round_world_07
cave_circuit_practice_01
urban_circuit_practice_01
tunnel_circuit_practice_01
cave_world
industrial_warehouse
aws_robomaker_small_warehouse
aws_robomaker_hospital

The first three IDs use versioned release artifacts. The remaining IDs are local evaluation candidates and report a clear error if their cached source assets are absent.

The 3D lidar is the one lidar profile (LIDAR_PROFILE=3d). A static-map flight (ENABLE_STATIC_MAP=true) needs a 3D static occupancy of its environment (STATIC_OCCUPANCY_3D_PATH); none exists yet, so the request refuses to start until roadmap item 11 delivers one.

Since roadmap item 14 closed, every simulation entry point flies on cameras: CAMERA_PROFILE=stereo_tof mounts a forward stereo pair (1280 x 960, 120 degrees, 0.20 m baseline, 7.5 Hz) and two 8 x 8 time-of-flight sensors looking up and down, and NAVIGATION_SENSOR_PROFILE=stereo_tof navigates on them with the lidar absent from the vehicle model (docs/camera_perception.md). The 3D lidar remains available on request:

./scripts/sim_urban_point_to_point_lidar_headless.sh

The sensor set and the position source are independent switches. The combinations flown have names of their own; the switches underneath still make any other:

# Cameras, no GNSS - the repository default
./scripts/sim_urban_point_to_point_gui.sh

# 3D lidar, no GNSS
./scripts/sim_urban_point_to_point_lidar_gui.sh

# Cameras, with GNSS
./scripts/sim_urban_point_to_point_gnss_gui.sh

# 3D lidar, with GNSS: no name of its own, the switches underneath
CAMERA_PROFILE=none NAVIGATION_SENSOR_PROFILE=lidar LOCALIZATION_PROFILE=gnss \
  ./scripts/sim_urban_point_to_point_gui.sh

The estimator is not named when GNSS is left off: each sensor set has its own default, and the two cannot be crossed, since visual_inertial needs the cameras mounted and lidar_inertial has no scans to register without a lidar (docs/localization.md). The same variables work on sim_urban_point_to_point_headless.sh.

The sensor set is visible in the GUI and the position source is not. With the lidar the vehicle carries the sensor, RViz shows a full spherical scan, the obstacle memory fills in every direction to about 35 m and the flights run at 2.4 to 2.7 m/s; with the cameras there is a forward depth cone about 6.4 m deep and two small time-of-flight cones, memory grows only where the vehicle has looked, the vehicle turns to face where it is going, and the flights run at 1.5 to 1.8 m/s. GNSS changes only what EKF2 fuses as its position, so the airframe, the sensors, the world and every RViz layer look the same; where it shows is the records, in the profile the runtime manifest names and in how far the true position stood from the goal at its acknowledgement.

CAMERA_PROFILE=stereo_tof NAVIGATION_SENSOR_PROFILE=lidar flies on the lidar with the vision path in shadow beside it. LIDAR_PROFILE=3d still names the 3D perception pipeline and the vehicle wrapper either way. On the camera profile the headless flights run on the textured GUI world instead of the collision-only sensor world, which a camera sees nothing of, and single-vehicle flights default to the visual_inertial localization profile: no GNSS, no magnetometer, no lidar.

Unknown and free volume have identical traversability and base cost; only confirmed occupied geometry is a hard spatial obstacle in the code as it stands. The invariant as restated on 2026-09-23 admits one more measured prohibition, space the sensor looked at and could not see (smoke, darkness), which roadmap item 18 delivers; space the sensor has not looked at stays free (docs/navigation_architecture_remediation.md).

Acceptance uses the urban environment, no static map, and only the 3D profile:

./scripts/sim_urban_point_to_point_headless.sh

Every run writes log/runs/<run-id>/manifest.json. The manifest binds the exact Git commit, navigation configuration, world, mission scenario, and runtime profile by SHA-256. When constrained-volume validation is enabled, a transient-local subscriber also retains the exact observed/occupied bit words for that volume in a revisioned raw_snapshot_3d_revision_<revision>.json artifact. The headless acceptance gate verifies the artifact hash and payload, zero ownership gaps, greater than 97 percent post-bootstrap route availability, fewer than 3 percent of post-bootstrap ticks in ordinary no-route holds, the measured planner p95 target, and every admitted successor-reserve proof (see docs/testing.md, "Headless Acceptance Gate", for the thresholds and why). Set DRONE_GAZEBO_RUN_ID and DRONE_GAZEBO_LOG_DIR when several acceptance runs must remain independently discoverable.

No-static single-vehicle headless runs automatically enable the persistent-3D acceptance gate. Repeated acceptance runs must be sequential and use distinct DRONE_GAZEBO_RUN_ID and DRONE_GAZEBO_LOG_DIR values so their manifests, metrics, and raw-volume snapshots remain independently auditable. Optional route-volume bounds are consumed only by the headless evaluator and are never supplied to mapping or planning.

When POINT_TO_POINT_SCENARIO_PATH is set, the scenario owns its waypoint sequence unless MISSION_GOALS_XYZ_M is also supplied explicitly.

Navigation uses one map-independent horizontal flight profile. The defaults are 6.5 m/s cruise speed (just under the speed the sensor-braking contract admits for the guaranteed lidar range), 10 m/s absolute speed limit, 4 m/s² maximum horizontal acceleration, which also bounds the lateral acceleration in turns. The planner, finite-path stopping model, and PX4 configuration receive the same values, and the simulation targets in the Makefile pass the same cruise.

Override the profile for an individual run with environment variables:

CRUISE_SPEED_MPS=6.5 \
ABSOLUTE_SPEED_LIMIT_MPS=10 \
MAXIMUM_HORIZONTAL_ACCELERATION_MPS2=4 \
./scripts/sim_cooperative_traffic_urban_headless.sh

These values are independent of map source.

Run the finite cooperative civilian traffic mission in the imported Urban Circuit Practice 01 environment. Both entrypoints use only 3D lidar and online obstacle memory:

./scripts/sim_cooperative_traffic_urban_gui.sh
./scripts/sim_cooperative_traffic_urban_headless.sh

This target verifies and installs the versioned environment release artifacts, materializes a Gazebo Harmonic collision world, leaves all static navigation artifact paths empty, and launches the four-vehicle online-mapping scenario from drone_city_nav/config/cooperative_traffic_urban_scenario.json.

Run the base single-drone no-static flight in the same environment:

./scripts/sim_urban_point_to_point_gui.sh
./scripts/sim_urban_point_to_point_headless.sh

The scenario is defined once in drone_city_nav/config/urban_circuit_practice_01_point_to_point_scenario.json. Its map-space launch pose is transformed by the world's map_to_sdf contract for Gazebo, while the same pose sets the PX4 origin and the navigation start. The headless target additionally validates the persistent full-3D planner, route ownership continuity, successor reserve, physical route-volume traversal, and measured runtime latency.

The finite scenario in drone_city_nav/config/cooperative_traffic_urban_scenario.json launches two pairs of civilian drones from opposite ends of the same urban corridor. The two parallel routes of a pair start only 2 m apart, deliberately forcing cooperative separation immediately after launch. Each pair carries opposing traffic through the corridor. Every vehicle owns its own PX4, navigation, mapping, and MPPI pipeline. All vehicles start and cruise at the same altitude; no fixed altitude layers are assigned.

At 20 Hz, each vehicle publishes a typed CooperativeFlightIntent containing its current state, physical footprint, bounded-validity MPPI horizon, and active passage use. Every cooperative agent independently rejects stale or out-of-order peer intents, predicts the continuous closest approach over a five-second horizon, and optimizes a deterministic space-time maneuver against all current conflicting trajectories together. Candidate plans combine continuous lateral or vertical displacement with an optional bounded entry-time shift; safe plans are ranked by separation, route progress, effort, and stable pair preference. Conflict and incumbent-plan state are latched briefly and released with hysteresis. The result is a soft planner preference and peer-separation cost, not a prohibited grid, inflated obstacle, or hard exclusion volume; raw physical obstacles remain the only hard collision constraint.

Static-map passage topology is derived offline from matching raw Occupancy3D and ESDF3D artifacts. The generalized compiler classifies footprint-feasible clearance topology, extracts arbitrarily oriented portal voxel patches, and stores a sparse medial segment graph. It does not use roof presence, axis-aligned portal assumptions, or all-pairs portal edges. This fingerprint-bound topology is offline passage evidence for visualization, diagnostics, and optional execution metadata; it is not a competing strategic route producer.

For route-associated passage execution, the planner samples route-orthogonal cross-sections from raw Occupancy3D, validates the full drone footprint in both transverse axes, and builds a varying local free-space envelope. Opposing traffic coordinates by shared sparse segment resources and uses deterministic continuous offsets when the measured volume provides enough separation. A narrow or otherwise conflicting passage schedules entry time with deterministic right-of-way; an active constrained span is never replaced mid-traversal. In no-static mode, peer lidar returns are removed only from persistent obstacle memory. The unchanged latest scan still reaches immediate safety validation, so cooperative filtering cannot hide a real close-range obstacle.

The mission referee uses Gazebo ground truth only for readiness and physical adjudication. Headless success requires all four drones to reach and physically hold at their own goals, no vehicle destruction or building collision, and a complete minimum-separation report. Both static-map and no-static-map workflows are supported. The GUI spectator starts on civilian_0 and uses cyclic next_living selection.

Mission outcome and vehicle death are separate contracts. Mission failures never request disarm. Force-disarm is owned only by the latched death lifecycle and is accepted only for a physical Gazebo collision or a typed 5 m proximity death. A vehicle that physically crashes has its death and disarm confirmed while the survivors receive a typed objective for confirmed stationary position hold.

Stop all running simulation leftovers, including related Gazebo/PX4/ROS processes and simulation containers:

./scripts/stop_sim.sh

Preview what would be stopped without killing anything:

./scripts/stop_sim.sh --dry-run

Gazebo GUI runs stop conflicting stale Gazebo simulator processes before starting, because this project does not support multiple simultaneous Gazebo instances on the same workstation. The cleanup is enabled by default and logs all candidate containers and PIDs before terminating them. Use DRONE_GAZEBO_CLEAN_STALE_DRY_RUN=true to list candidates without killing, or DRONE_GAZEBO_CLEAN_STALE_PROCESSES=false only for intentional debugging.

By default, the Gazebo 3D view uses Gazebo's CameraTracking plugin. The point-to-point mission follows the PX4-spawned model x500_lidar_3d_0; multi-vehicle missions derive the model from the typed spectator selection. Disable the camera with ENABLE_GZ_GUI_FOLLOW_CAMERA=false, change the point-to-point target with GZ_GUI_FOLLOW_TARGET, or adjust the third-person camera offset with GZ_GUI_FOLLOW_OFFSET="-7 0 3.5". The runner waits for the initial model to appear in the server scene before starting the GUI, then repeatedly publishes an ID-aware native CameraTrack command until the resulting target state remains stable. The conflicting /gui/follow service is intentionally not used. Simulation unpause remains a separate Gazebo world-control operation.

Multi-vehicle scripts expose MULTI_VEHICLE_SPECTATOR_INITIAL_VEHICLE_ID and MULTI_VEHICLE_SPECTATOR_RESELECTION_POLICY. The latter accepts first_living or next_living. first_living always selects the lowest-index living scenario vehicle; next_living scans forward from the destroyed vehicle and wraps at the end of the scenario list. MULTI_VEHICLE_SPECTATOR_RESELECTION_DELAY_S controls the handoff delay and defaults to three seconds.

By default, RViz also opens in a follow-camera debug view that targets the visualization-only drone_follow TF frame. Disable that behavior with ENABLE_RVIZ_FOLLOW_CAMERA=false; the runner will then open the top-down RViz layout instead. This switch only changes RViz visualization and does not affect navigation or offboard control.

After a GUI run, validate deterministic Gazebo launch diagnostics:

python3 scripts/validate_gazebo_gui_launch_log.py \
  log/gz_drone_nav.log \
  --gui-log log/gz_gui_drone_nav.log \
  --scene-diagnostics-dir log/gazebo_scene_debug

GUI runs keep Gazebo server/world orchestration output in log/gz_drone_nav.log and Gazebo GUI client output in log/gz_gui_drone_nav.log. The current free-camera position, orientation, and world-space forward direction are sampled once per second in log/gz_gui_camera.jsonl; set GZ_GUI_CAMERA_LOG_INTERVAL_S or GZ_GUI_CAMERA_LOG_FILE to override that behavior. The launcher also captures bounded Gazebo scene diagnostics under log/gazebo_scene_debug/ by default. Disable only the scene diagnostics with ENABLE_GZ_SCENE_DIAGNOSTICS=false when you need a minimal run.

Run a headless smoke validation:

./scripts/sim_urban_point_to_point_headless.sh

Equivalent explicit command inside an interactive container shell:

make sim-urban-point-to-point-headless

Record a debug rosbag while the simulation is running:

./scripts/record_debug_bag.sh

The container targets use build/, install/, and log/.

Static mode loads an environment's raw Occupancy3D, its fingerprint-bound FreeSpaceTopology3D, and its precomputed chunked ESDF3D in production_mppi_node. Those artifacts are optional per environment; the current Urban Circuit environment ships none of them and every mission flies no-static. Static planning loads the separate free-space topology index as optional static passage metadata. Route production remains owned by the same persistent full-3D planner used in no-static mode; the topology artifact does not instantiate a competing search or route owner. There is no hand-authored planner centerline, semantic lane, or nearest-portal selector. No-static mode has one production perception pipeline. The 3D profile decodes every organized scan into hit and miss beams, resolves the full 6DoF acquisition pose, and integrates the rays into revisioned unknown/free/occupied Occupancy3D. Dirty chunks update derived distance evidence without giving it collision authority. Planning treats free and unknown identically; exact raw occupied geometry remains the only hard spatial obstacle until roadmap item 18 adds the second measured one, space observed unobservable.

The static free-space topology index remains an optional compatibility acceleration for static planning. It is not generated or consumed by the no-static 3D pipeline. Source contracts are documented in docs/world3d.md, docs/obstacle_mapping.md, and docs/configuration.md.

Obstacle topics follow a strict raw/runtime/debug contract. /drone_city_nav/obstacle_memory_status is the lightweight per-update heartbeat. For production navigation, /drone_city_nav/raw_obstacle_snapshot_3d and /drone_city_nav/raw_obstacle_delta_3d carry adaptive base snapshots and the latest cumulative dirty chunks. Persistent integration and DDS serialization run on independent latest-value workers; superseded work is coalesced rather than allowed to make sensor evidence stale. The larger debug representation is published at a bounded cadence and is not deserialized by the planner. Raw grids contain only direct sensor evidence. Each timestamp-aligned scan first publishes /drone_city_nav/latest_sensor_obstacle_scan; while fresh, those physical hit points validate the complete finite path without waiting for persistent-memory integration. The planner builds a distance-derived risk field without materializing inflated grids. Static mode instead loads raw Occupancy3D directly.

RViz publishes the selected spectator's latest 3D returns on /drone_city_nav/current_lidar_returns_3d and its downsampled accumulated occupied voxels on /drone_city_nav/raw_memory_obstacle_points_3d. The current cloud has queue depth one and no decay; accumulated memory is rate-limited. Other vehicles retain only their lightweight pose and path displays.

All published targets and execution horizons use the configured flight envelope 1.0 <= z < 32.0 m. Raw collision checks use the drone's swept oriented 3D footprint, including horizontal radius and upper/lower body extents. This is physical vehicle geometry, not an inflated prohibited region; ESDF risk bands remain finite route-ranking costs.

Every normal execution path uses the configured horizon duration and includes an arrival speed profile within its own samples. Its final point has zero translational velocity and yaw rate. No separate motion phase is appended after the endpoint. Arrival shaping uses a conservative horizontal deceleration limit that is independent of the larger acceleration available to ordinary static-map manoeuvres. When a new valid receding-horizon path arrives it immediately supersedes the previous path or a temporary no-executable position hold. If one planning update cannot provide a replacement, both the remaining path geometry and its remaining controls from the measured vehicle state are validated. A divergent path is rebuilt from that measured state, with a complete arrival profile inside the remaining control slots. It continues only after complete raw-world validation and never past the previous deadline. It therefore reaches its own terminal rest instead of being discarded solely because the next update failed.

Production MPPI diagnostics are written as rate-limited JSON Lines under log/mppi/; recent full records are also retained in a bounded ring and dumped to mppi_error_context.jsonl when a collision episode begins. The simulation wrapper prints the exact per-run artifact directory.

Every headless flight records what its processes consume, and the mission check reads the record. On r345 (392.8 m in 142 s, the same flight as the figures above) the onboard processes, the navigation nodes and the DDS agent, used 2.73 cores at p50 and 3.36 at p95 of a Ryzen 9 5900HX, 798 MiB of resident memory and 206 MiB of GPU memory, with the GPU at 42 percent of an RTX 3060 Laptop; the simulator ran at a real-time factor of 1.00. What that does and does not say about a drone computer, and the assumptions behind naming the Jetson Orin family as the class the measurements do not exclude, are in docs/resource_budget.md.

The approved build system entry point is colcon, not direct top-level CMake. The C++ package itself uses modern target-based CMake in drone_city_nav/CMakeLists.txt.

Production navigation services are compile-time separated from ROS composition:

drone_city_nav_production_mppi_component  (src/runtime/ros)
  -> drone_city_nav_mppi_runtime          (src/runtime)
  -> drone_city_nav_route_runtime         (src/planning, trajectory, execution)
  -> drone_city_nav_world_runtime         (src/world)

These package-private libraries have independent build-only include roots. The world, route, and MPPI runtimes are ROS-free; the component contains the ROS capture/apply/publish adapters and does not link the compatibility core umbrella. Header-graph and manifest tests enforce the boundary rather than relying only on declared target_link_libraries edges. See docs/architecture.md.

Do not introduce an ad-hoc build directory when an existing build/ directory and compile database are already available. The normal build commands keep the build out of the source package and export a compile database for tooling.

Project dependencies are managed through:

• ROS 2 and Gazebo system packages in docker/Dockerfile.
• px4_msgs built into /opt/px4_msgs_ws by the dev image.
• PX4 Autopilot cloned by scripts/setup_px4_autopilot.sh into external/ and built there as px4_sitl inside the dev container; the 3D-lidar profile launches that binary directly. scripts/bootstrap.sh does both.

The wrapper scripts source /opt/ros/${ROS_DISTRO}/setup.bash and /opt/px4_msgs_ws/install/setup.bash inside the container before invoking make, colcon, or simulation commands.

Do not vendor new dependencies without documenting why they cannot be provided by ROS, system packages, or a clearly pinned external checkout.

Formatting uses the repository .clang-format. Do not run mutating clang-format -i over the whole repository. Use make format, or pass --all to ./scripts/format_cpp_changed.sh only when intentionally normalizing the project in the active environment.

Reviewer checks should be non-mutating:

make quality

clang-tidy is only run when a compile database is available. If the database or a tool is missing, the check script reports an explicit skipped check with a reason.

The main documentation set starts at docs/overview.md.

Key pages:

• docs/scenarios.md
• docs/installation.md
• docs/build_and_run.md
• docs/gazebo_simulation.md
• docs/architecture.md
• docs/roadmap.md
• docs/navigation_pipeline.md
• docs/world3d.md
• docs/environment_candidates.md
• environments/environment_manifest.yaml
• docs/trajectory_optimization.md
• docs/drone_control.md
• docs/terminal_capture.md
• docs/replanning.md
• docs/obstacle_mapping.md
• docs/camera_perception.md
• docs/configuration.md
• docs/diagnostics.md
• docs/testing.md
• docs/development.md
• docs/troubleshooting.md
• docs/performance.md
• docs/hardware_builds.md
• docs/design_questions.md
• docs/technical_debt.md
• tools/README.md (the scripts the acceptance flights are launched and read with)

Alexander Aglerimov.

• Email: [email protected]
• Telegram: https://t.me/formiat
• LinkedIn: https://www.linkedin.com/in/formiat
• CV: https://formiat.github.io/autoCV/cv.pdf
• YouTube: https://www.youtube.com/@formiat
• Reddit: https://www.reddit.com/user/formiat
• GitHub: https://github.com/formiat

Questions, reports of what does not work and offers of work are welcome through any of them; defects and proposals for the repository itself are best as GitHub issues.
